1U Rackmount Network Appliance with Intel Skylake 6th/7th Ge



　　


Feature:
Supports LGA1151 6th/7th Gen Core i3/i5/i7 Pentium/Celeron Xeon E3 1200 v5/v6/(C236 chipset) processors
Deploy Intel C236 express chipset
Supports 4 x DDR4 DIMM 2133MHz RAM, Max. 64GB(ECC/Non-ECC)
Supports 2*Intel i211AT GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 4 x expanded NIC
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 2 x USB 2.0 headers, 2 x USB 3.0 ports
Supports M-SATA SSD, CF, SATA HDD storage
ATL-C236N4

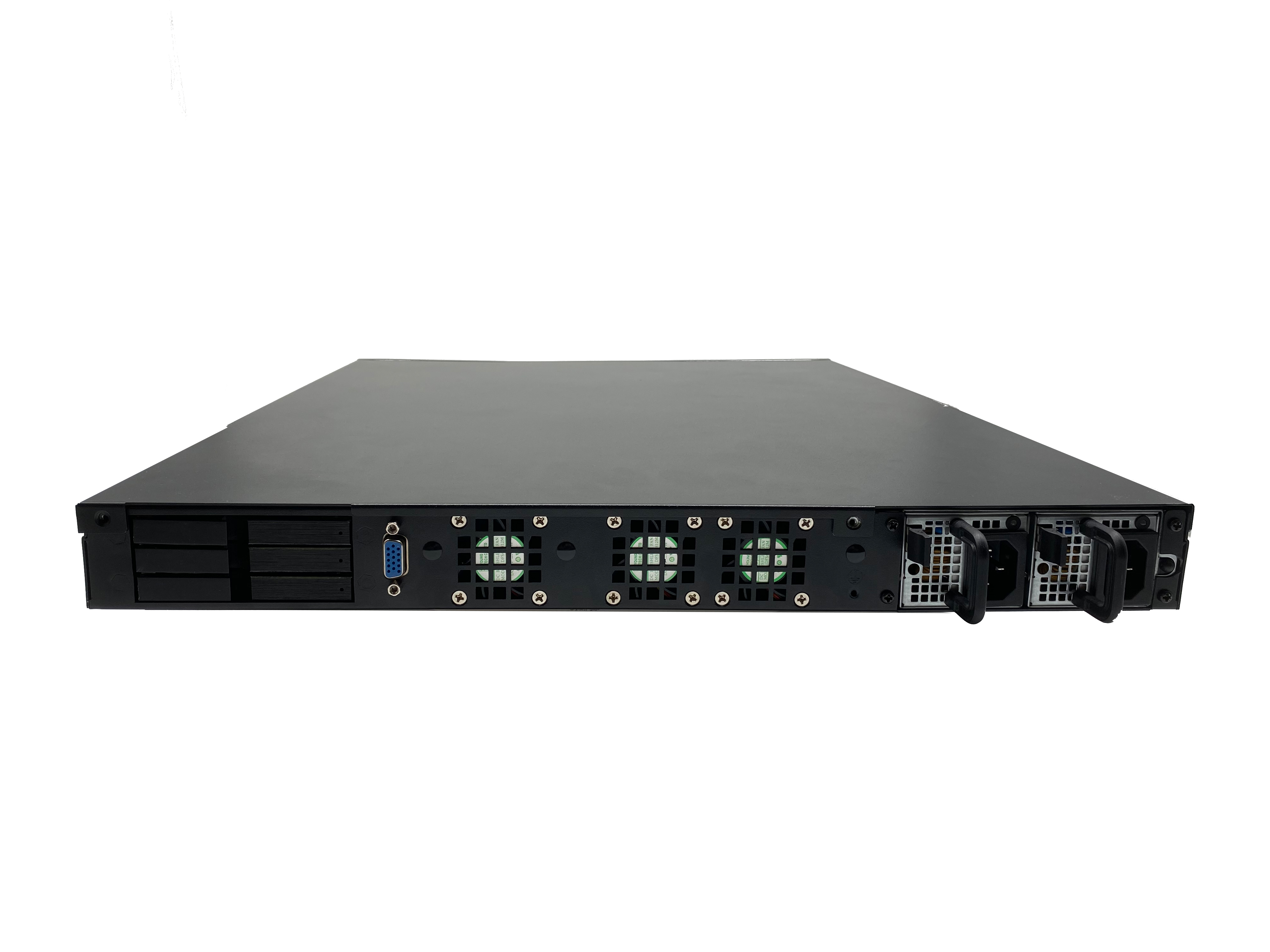

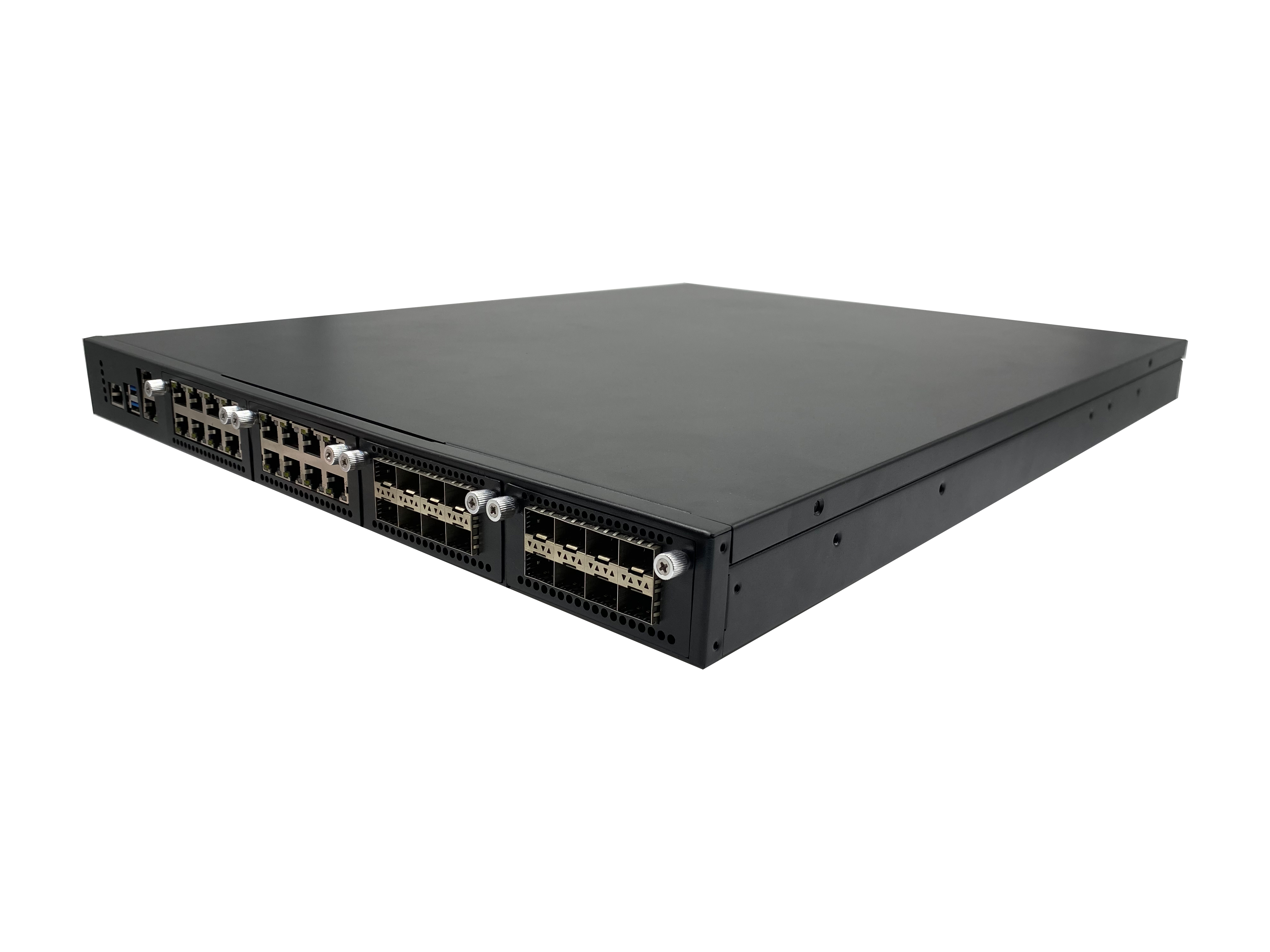

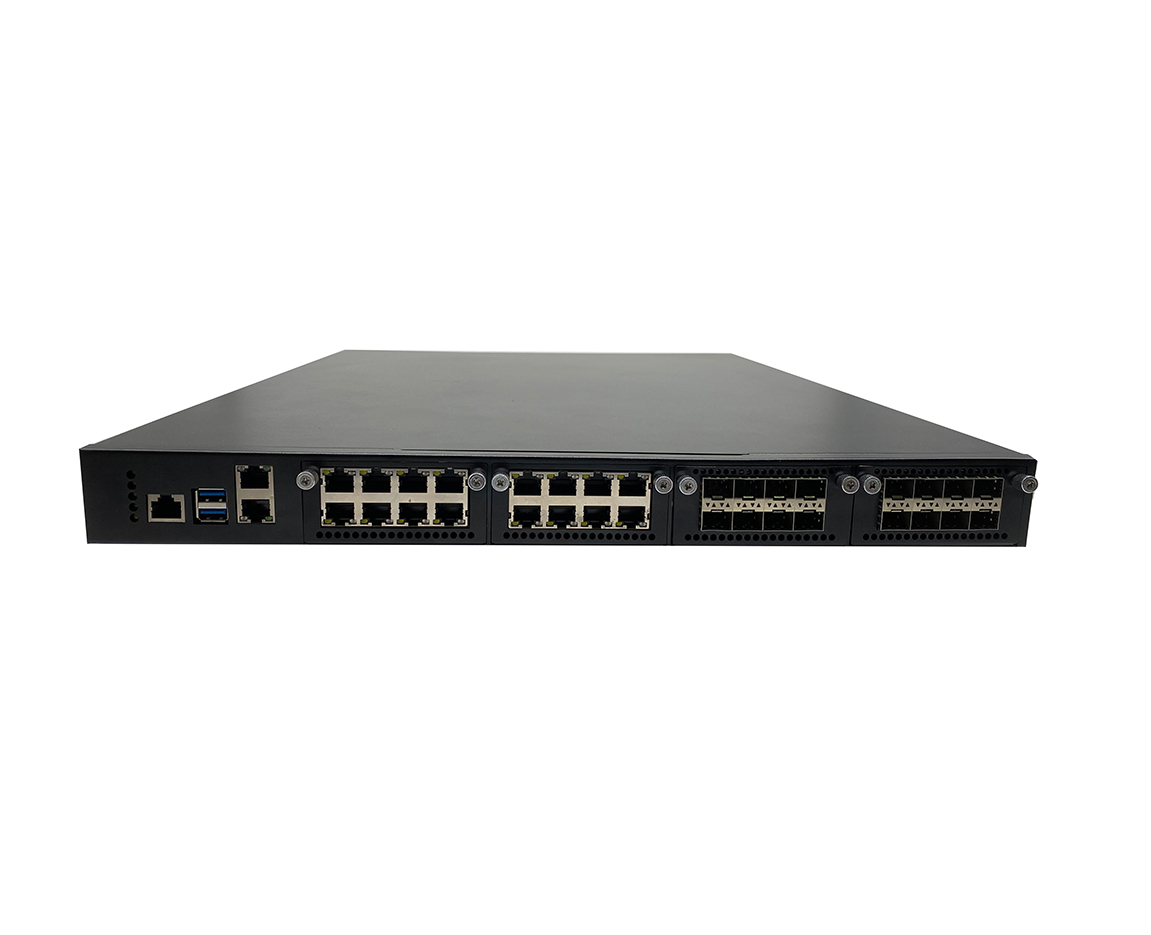

1U Rackmount Network Appliance with Intel Skylake 6th/7th Gen Core i3/i5/i7 or Xeon E3 1200 v5/v6 processors, 4 X NIC module slots,

Specification:                                                                       ATL-C236N4
Model No. ATL-C236N4
Form Factor 1U 19” Rackmount
Platform Processor Options Intel Core i7/i5/i3, Pentium, Celeron, Xeon E3 1200 v5/v6
CPU Socket 1 x LGA1151
Chipset Intel C236
Security Acceleration N/A
BIOS AMI SPI Flash BIOS
System Memory Technology DDR4 2133 MHz
Max. Capacity 64GB
Socket 4 x 288pin DIMM
Networking Ethernet Ports 2 x Intel i211-AT GbE RJ45 ports
4 x NIC slot
Bypass Depends on NIC slots
I/O Interface Reset Button -
LED 1 x Power LED
1 x HDD LED
1 x GPIO LED
Power Button -
Console 1 x RJ45
USB 2 x USB 3.0
LCD Module -
Display 1 x VGA
Power Input AC power inlet on PSU
Storage HDD/SSD Support 3 x 2.5'' bays
Onboard Storage 2 x m-SATA, 1 x CF slot
Expansion PCIe 1 x PCIe X8
Mini-PCIe 2 x Mini PCIe(For WiFi and 4G)
Miscellaneous Watchdog 255 levels, 1 to 255 sec
Internal RTC with Li Battery Yes
TPM -
Cooling Processor CPU fan
System 3 x System cooling fans
Environmental Parameters Temperature 0℃～45℃/ -20℃～70℃
Humidity 5 ~ 95%, non condensing
System Dimensions (WxHxD) 438x44x550mm
Weight 5.8 kg
Package Dimensions (WxHxD) 510x130x610mm
Weight 6.5 kg
Power Type/Watts 220W single ATX PSU
300W redundant ATX PSU(Optional)
Input 90~264V@47~63Hz
Approvals and Compliance CE, FCC Class B


Ordering Information
Part number PCH DDR4 RJ45 NIC Bypass Console USB 3.0 2.5'' HDD Power
ATL-C236N4-SP C236 4 2 x Intel i211 4 x NIC slots By NIC 1 2 3 x Internal AC 220W single ATX
ATL-C236N4-RP C236 4 2 x Intel i211 4 x NIC slots By NIC 1 2 3 x Internal or 3 x External AC 300W Redundant ATX
Compatible NIM
Slim Module Port Chipset BYPASS
NIC-0025-2CS 2 x GbE RJ45 Intel i211-AT N/A
NIC-0025-4C 4 x GbE RJ45 Intel i350-AM4 N/A
NIC-0025-8C 8 x GbE RJ45 2 x Intel i350-AM4 N/A
NIC-0025-8CS 8 x GbE RJ45 2 x Intel i350-AM4 N/A
NIC-0025-2FS 2 x GbE SFP Fiber Intel i210-IS N/A
NIC-0025-4F 4 x GbE SFP Fiber Intel i350-AM4 N/A
NIC-0025-8F 8 x GBe SFP Fiber 2 x Intel i350-AM4 N/A
NIC-0025-4F4CS 4 x GbE RJ45 + 4 x GbE SFP 2 X Intel i350-AM4 N/A
NIC-0025-2WF 2 x 10 GbE SFP Fiber Intel 82599ES N/A
NIC-0025-4WF 4 x 10 GbE SFP Fiber Intel XL710 N/A
Packing List
1 SATA data cable
2 Power cord 3P 180cm, China
3    Rack ears
4 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4    Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
